Water-filled Jersey LCD Barricade 42"H x 72"L (HDPE) TL-3 rated

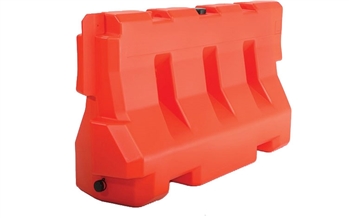

Water-filled Jersey LCD Barricade - 42-inch TL-3 rated

Alternative Views:



UV-resistant High Density Polyethylene (HDPE)
Blow molded, ships from UT

: $355.93


Product Code: MB42X72-JSS-LCD

Select Color

Safety Orange
White

Qty:
Description Tech Specs


Water-filled Jersey LCD Barricade 42"H x 72"L (HDPE) TL-3 rated

Crash-Tested - Interlocking - Multi-Purpose

100% Recyclable - Made in the USA

The impact of construction zone collisions reaches beyond material loss. Accidents in work zones are often fatal and this reality was the driving force in developing the Traffic Barricade. We designed this product to help mitigate the risk drivers and work crews face each day. This 42-inch Jersey Shape LCD is the second iteration of our JSS LCD product and boasts enhanced features to make the barricade more versatile while continuing to meet stringent safety standards.

This traffic control device is approved by the National Cooperative Highway Research Program (NCHRP) 350 standard for a Longitudinal Channelizing Device (LCD) at Test Level 3 (TL-3) criteria for use in high-speed construction zones. An optional fence kit provides a pedestrian deterrent, offers protection from projectile debris, and can support privacy screening.

Concrete barriers, while popular, are often not required and can contribute to fatal accidents by redirecting vehicles back into active traffic. Traffic cones and drums are also popular, but often create confusion for drivers at normal traffic speeds. Traffic engineers and human factors professionals from Texas A&M concluded that gaps between drums or cones cause significant delays in driver response time1. The Traffic Barricade forms a clear line of delineation and is treated like a wall by drivers.

Features and Benefits

  • NCHRP-350 crash tested and accepted at TL3 standards
  • Compatible with standard amber highway barricade light
  • Interlocking “J-Hook” design requires no additional hardware or parts
  • Barricade allows for water ballast expansion in freezing conditions
  • One-year manufacturing defect warranty

Federal Certifications

  • Meets MUTCD Specification 6F.66 for LCD
  • Meets NCHRP-350 TL3 requirements for LCD

Optional Customization

  • Chain link style fence panel
  • Factory-installed reflective sheeting

Note: Be sure to evaluate job requirements to determine what type of LCD is required. The MB42x72 JSS LCD federal approval memo is on file and available upon request.
