Remcon Guardsafe 36 Water-Filled Construction Barrier

Organize construction access, guide pedestrians, and mark temporary traffic routes with the Water-filled barricade Remcon "Guardsafe 36". This 36-inch-high by 72-inch-long polyethylene barricade combines a visible boundary with swivel-pin connections that let adjoining units turn up to 90 degrees.

Use connected sections to outline a work area, define a checkpoint approach, or guide movement around restricted spaces. The barrier weighs 70 pounds before ballast is added, allowing crews to establish the layout before filling it on site.

Swivel-Pin Connections for Corners and Changing Routes

A temporary barrier line needs to accommodate the site around it. The Guardsafe 36 swivel-pin design connects individual units into straight runs, curves, and turns of up to 90 degrees. This flexibility helps crews arrange barricades around corners and adjust routes as work progresses.

• Construction boundaries: Mark the edges of work areas and designated access routes.
• Pedestrian guidance: Create visible routes around temporary closures and restricted spaces.
• Checkpoint organization: Define approaches and controlled entry points.
• Crowd management: Arrange connected barricades along designated public routes.

Practical Filling, Draining, and Handling

The large threaded top fill port accepts water or sand ballast. When water is used, dual bottom drain plugs allow it to be released before the barrier is moved. Molded-in recessed handles provide handholds for positioning the empty unit.

• 70-pound empty weight for handling before ballast is added.
• Recessed handles integrated into the barrier body.
• Threaded top opening for adding water or sand.
• Two bottom drain plugs for releasing water after use.

Visibility Options for Outdoor Work Areas

Bright barrier colors help distinguish controlled routes from the surrounding site. Two molded-in pockets on top accommodate standard blinking lights, while the flat sides provide surfaces for applying reflective striping.

The rotationally molded polyethylene body resists cracking, denting, harsh weather, and ultraviolet exposure, making it suitable for repeated outdoor deployment.

MASH TL-1 Longitudinal Channelizing Device

Remcon identifies the Guardsafe 36 as FHWA eligible under MASH TL-1 as a Longitudinal Channelizing Device (LCD). Its intended role is traffic channelization and visible separation in temporary traffic-control layouts.

Guardsafe 36 Dimensions and Specifications

Explore the Guardsafe 36 Design

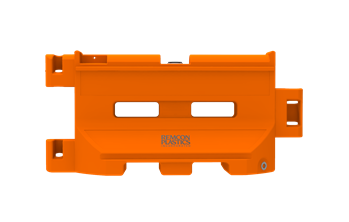

Connecting ends, recessed handles, and accessible ballast ports bring everyday setup features together in one reusable barricade. The image below provides a closer look at the Remcon Guardsafe 36.

Guardsafe 36 Fence Topper Installation Guide

Installing a fence topper panel? Refer to the Guardsafe 36 fence topper installation instructions (PDF) for assembly guidance.
