Road Plate Center Section. 59"L x 19.7"W Yellow with rubber ends.
Road Plate Center Section. 59"L x 19.7"W Yellow with rubber ends.

Alternative Views:



Shipping Note: Road Plate center and end sections are shipped 20 per pallet

Pallet Sizes:Road Plate Center and End Sections - 59" x 32"

: $484.98


Availability:: Usually Ships in 3 to 5 Days
Product Code: CSP-RP-CENTER
Qty:

Description Tech Specs


Shipping Note: Road Plate center and end sections are shipped 20 per pallet

Pallet Sizes:Road Plate Center and End Sections - 59" x 32"

Road Plate Center Section. 59"L x 19.7"W Yellow with rubber ends.

The Ideal Substitute For Steel Plates - No BoomTruck or Cold Patch Needed!

  • Easy to install modular system
    - no special lift equipment needed - two man lift for installation, 97 lbs. per section
  • Tested to vehicle weights of 96,800 lbs.
    - Single wheel load, 14,520 lbs. at 27.5” trench width
  • No rust or corrosion, long lasting polymer material
  • No “rattle” from crossing vehicles
    - rubber ends adapt to road surface and eliminate noise
  • Deters metal thieves
  • Anti-slip surface, tread pattern provides grip
  • Ramp design slows traffic for increased safety

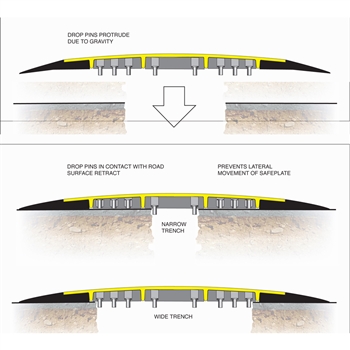

  • Features “Drop Pins” that increase stability
    - pins protrude into trench preventing lateral movement of plate
  • Steel linking brackets lock sections together<
  • End sections must be bolted to ground in order to lock unit into position
  • Stacks securely for transportation and storage

Specifications

  • Road Plate: Length - 59"
    Width - 19.7"
    Weight - 96.8 lbs.
  • End Section: Length - 59"
    Width - 19.7"
    Weight - 50.6 lbs
